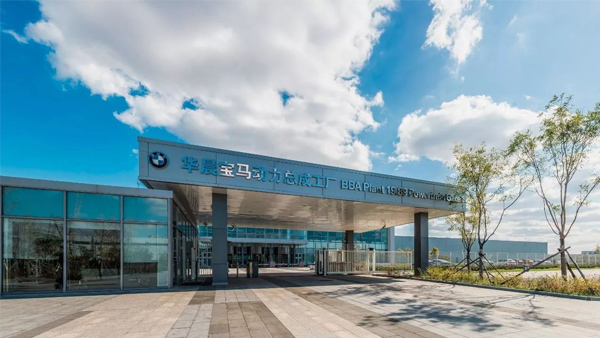

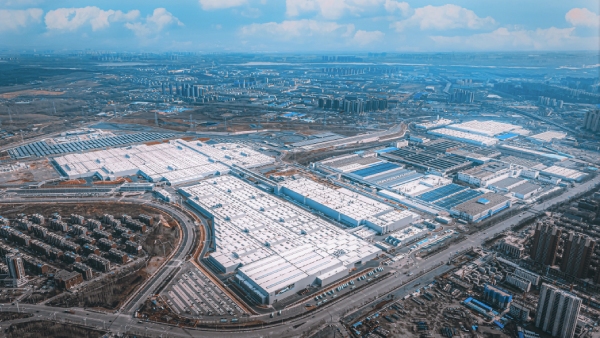

The Powertrain Plant is the newest one of the BMW Group. It is located in the economic and technological development zone in northeast China's Shenyang City. The plant occupies an area of 0.9 square kilometers. In August 2013, the construction works of the new plant started. In January, 2016, the new plant officially has opened. The Powertrain Plant hosts all the three functional areas of powertrain production, which includes foundry, machining, assembly and HVB center. The plant also has a quality performance test center as well as an inbound and outbound logistics center. It is one of the advanced and sustainable powertrain plants worldwide and locates in close proximity to both BMW Brilliance vehicle plants. This leads to an optimized lean value stream.
Aiming for sustainable development, the plant has an optimal layout and adopts numerous of environment-friendly and energy-saving technologies. The media tunnel built during the initial period of plant construction reserves sufficient space for the supply of electric power, water-pipes, heat supply and ventilation pipelines. World-leading Building Automation System (BAS) integrates energy consumption monitoring, analysis and adjustment. The system has thousands of detectors installed all over the plant working on a 24/7 basis. Lighting in the plant leverages natural lights and intelligent lighting system. Compared with the traditional BMW heating concept, the new plant can reduce external energy input for heating by 80% due to a heat recovery technology.
Foundry——Casting of aluminum crankcases
The foundry is the starting point of the engine plant’s value stream. For the production of the crankcase the foundry boasts world's advanced smelter, which can reduce the energy consumption. Further highlights are:
Direct connection of melting and casting by underground conveyer system with no losses of temperature and increased safety.
Innovative casting feeding system to reduce return material demand.
Contemporary casting of two crankcases for higher efficiency and enhanced energy usage.
World-leading low pressure die casting technology brings high yield, excellent control of operative parameters, good metallurgical and technological quality.
Each casted part receives an integrated data matrix code that includes all relevant process parameters.
Industry 4.0 technology: self-learning x-ray quality inspection is self-adjusting the areas of interest to ensure the supply of zero defect products to the customer.
Totally inorganic binder process in sand core making is cutting-edge technology worldwide, the binder is based on water-soluble alkali silicates quartz sand dissolved in water, and brings almost zero emission in the binding process, which is highly environment friendly. The foundry is almost neutral in scent and provides highly advanced and healthy workplaces for the associates.
Most of the used sand can be recycled for the sand core process (highly environmentally friendly).
By use of a unique wire arc spraying technology (LDS) patented by the BMW Group, an innovative coating technology for the production of cast-aluminum crankcases has been introduced: The cylinder faces of all crankcases are coated with a wafer-thin layer of iron particles applied in liquid form. This results in a lower internal friction in the engine and less fuel consumption with reduced engine weight.
Efficient smelters with heat recovery system; heat recovered is used for pre-heating of aluminum ingots and supports indoor heating.
Direct link between foundry and machining, casting parts are transported via conveyer system to the machining workshop directly, which helps to reduce the through put time.
The foundry in the Powertrain Plant is the second one within the BMW Group global production network. Shenyang has implemented all the competence and knowledge from the BMW Group plant Landshut.
Machining——Accuracy required of ? of the thickness of a human hair

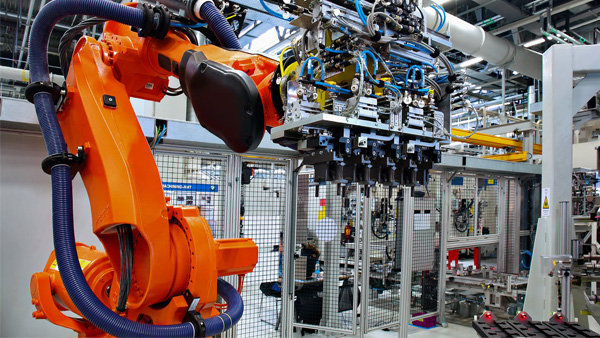

In the machining workshop two core engine components cylinder and cylinder heads are machined. The raw cylinder material is provided by our own workshop. The raw cylinder heads material is provided by supplier. From a raw to product ,it will passed a series of incising, drilling, grinding ,milling and robot assembling operations. Production processes are highly automated and self-correcting machinery ensures each component being machined to an exact specification. Highly skilled and experienced associates ensure the high quality of the products and productivity of the operations.
Highlights in machining shop include:
1.Usage of the latest machining technology similar to the other plants in Europe, thus resulting in the same excellent quality and accuracy.
2.Each machining operation utilizes the latest gauging technology to check the features machined for diameter and depth. In order to meeting BMW technology requirements.
3.Latest high-pressure washing machines are used to clean the components to ensure absolute technical cleanness. And during the high-pressure washing, the burr in the hole will be clear away.
4. We are manufacturing to extreme tolerances eg. Valve/guide bore 6 microns ? of human hair.
Assembly——The art: putting it all together on time with zero defects
In the assembly workshop, the production lines are highly flexible and able to produce 3-cylinder and 4-cylinder engines at the same time, whether they need to be installed longitudinally or transversely. Producing zero defect engines for our customers at all times is what the assembly facility is designed to do. A 'no fault forward' philosophy is applied, in-process quality checks are implemented at critical stages and every engine undergoes a mechanical and electrical test during the assembly build. Highlights in assembly shop include:
Assembly processes have been implemented from the European production system.
Highly ergonomic production line is provided to production associates to take care of their health in the long run (in regards to the global BMW philosophy “today for tomorrow”).e.g. latest conveyor system with high flexibility, associates can adjust the height to the most comfortable position.
To ensure zero defect production, all engines are 100% cold tested (test with oil, but without fuel).
Furthermore, the engines are 100% leak tested for oil and water (coolant liquid) . Highly sensitive Helium gas is used in the leak tests for the fuel system.
On top, a statistical amount of engines is also tested with fuel in the performance test center (fired engine).
All technological and test parameters are recorded and long-term storage for each engine. Every engine can be traced back to its birth moment –the casting in the foundry. All process data are utilized in data deep mining and contribute to a permanent improvement of manufacturing processes.
Quality Performance Test Centre——Strong backing to supreme quality

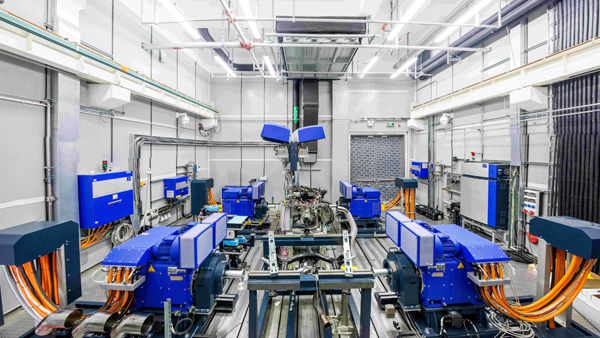

State-of-the-art electric dynamometers used for the test cells, which are capable of testing engines with performance up to 370 kW and over 700Nm.
World-leading test systems of internal combustion engines are used. The system is capable of remote running.
Expert team from BMW's engine plants in Europe work on site to provide technical assistance, monitor the whole process and train local associates. The teams help realise the maximum exploitation of all the advanced equipment and instruments.
A statistical amount of engines undergoes a rigorous dynamic test up to 50 hours after which they are inspected and analysed to ensure the BMW quality standard has been met. This aims to ensure the customers can always get the high quality engines possible.
Logistics——Daily handling capacity of 2000 boxes AENDERN
The logistics team ensures that the right engine derivatives are produced at the right time. Every engine has an order and is produced in the exact sequence as required from the vehicle plants. Logistics schedule, receive, store and move both components machined at the engine plant along with many bought-in parts to ensure a consistent flow of engines is built.
Tow trucks replace forklifts to transport parts to the production lines, in an aim to reduce potential accident and ensure efficient production.
At the sequencing center, finished engines are stored and distributed in sequence to the vehicle plants. For Plant Tiexi, it will take only 82 minutes from the order of an engine until the delivery to the plant. An engine will be send to the vehicle plants in 90 minutes.
HVB center---Enters New Phase of New Energy Vehicle Development
October 24th 2017, BMW Brilliance Automotive (BBA) today opened its “High Voltage Battery Center” located at its Tiexi Powertrain Plant in Shenyang, BMW Brilliance is building a complete NEV ecosystem that covers the entire industry value chain from R&D capabilities, battery solutions and technology leadership, to brand and product, charging and infrastructure and e-mobility services.
BBA’s HVB Center in Shenyang is BMW Group’s third comprehensive battery center worldwide, and first outside of Germany. The Center encompasses battery R&D, production and testing in one location. The HVB Center’s innovative and bespoke in-house production process enables BBA to differentiate itself from competitor brands and ensures customers driving its electrified models receive the full BMW driving experience.

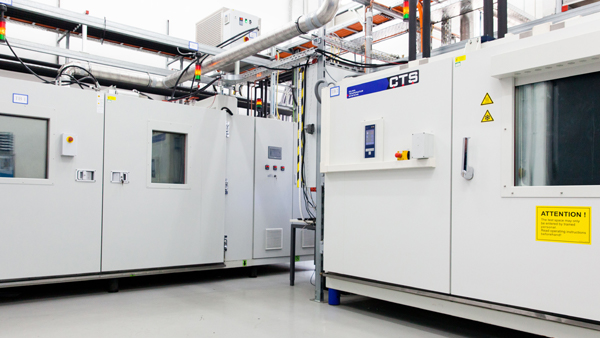

The HVB Center is a competence center which brings together battery production, R&D, quality, laboratory, procurement and supply chain management functions. A robust and flexible production process means BBA can achieve faster product launches while delivering a battery product that combines optimal safety, durability and performance.
At BMW Brilliance, HVB packs are produced in two stages. In the first, highly-automated process, standard lithium-ion cells are processed and combined into a larger unit, known as the battery module. In the second stage, battery modules are mounted together with connections, control units and cooling units in an aluminum housing to form a complete HVB pack. This production process has two decisive advantages: first, standardized battery modules mean that properties and quality standards are uniform, forming the basis for a wide variety of electric drive variants. Second, the aluminum housing size and shape, as well as the number of battery modules used, can be perfectly adapted and tailor-made for each vehicle.

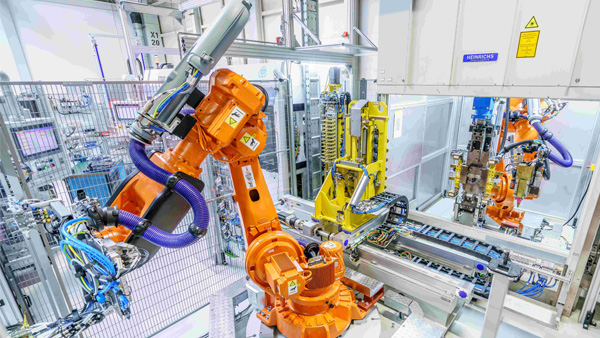

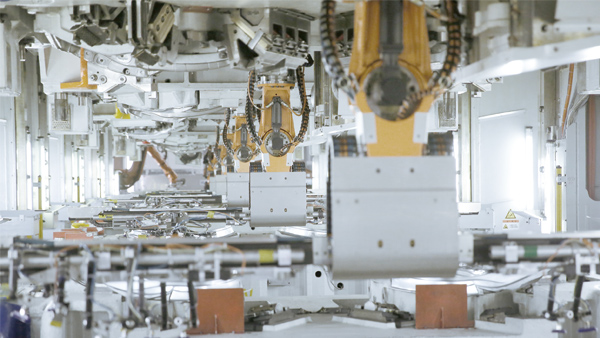

At BBA’s HVB Center, innovative production processes have been applied in order to carry out double-module battery production. State-of-the-art robotics ensure maximum accuracy in the highly automated process of forming double modules from lithium-ion cells. The application of advanced and Industry 4.0 technologies means the Center sets new standards for HVB production in China. An integrated process management (IPM) system for quality management leverages big data to trace battery cells and processes through production, including information as detailed as tightening torque. Automatic laser welding gives high accuracy and stable weld quality, adding strength and reliability to the battery frame and electrode connections, thereby enhancing battery function and safety. Optical checking is enabled by 3D cameras that detect abnormal trends in welding and foil application, verify and optimize welding quality, and flag potential quality defects.
The entire production process takes place in an environment with strictly controlled cleanliness, humidity and temperature. Plasma cleaning technologies are used for surface cleaning to achieve increased surface tension force for better application of foil and glue. In the final stage of module assembly, the double-module is completed in an isolated workshop with a controlled constant humidity of under 31% to ensure gluing quality. Another feature of the automated production line is the robotic arms equipped with suction cups that capture and deliver cells, preventing any potential risks involved in manual handling.
